PP-8HL
The NorthStar PP-8HL features the extra lifting height of the PP-8HI but is also 20 inches longer and 3 inches wider. Or to compare it to the original, the NorthStar PP-8HL is 20 inches longer, 3 inches wider, and 14 inches taller than the NorthStar PP-8ST! The extra runway length will accommodate almost all of the longer wheelbase pickup trucks, except dually. This is because the dual rear wheels are TOO WIDE to fit between the column lock assemblies. Check out the NorthStar PP-8HL if you need a portable lift for your dually!
Features and Benefits
- Model: PP-8HL
- 8,000 lb. Capacity
- Free Standing/Portable Design
- Extra Tall/Extra Long
- Diamond Plated Runways
- Single-Point Lock Release
- Lock Ladder Design
- Double Lock Safety System
- Caster Kit with Polyurethane Wheels Included
- Steel Approach Ramps Included
- Steel Jack Tray Included
- 4 Plastic Drip Trays Included
- 4 Wheel Stops Included
- 2 Rubber Wheel Chocks Included
- Perfect For Storing or Working On Vehicles
- 110volt Electric Operation (30 AMP BREAKER REQUIRED)
- Shipping Weight 1,900 lbs.
- 3 yr Structural – 2 yr Hydraulic Warranty – Parts Only
Introduction
The NorthStar PP-8HL features the extra lifting height of the PP-8HI but is also 20 inches longer and 3 inches wider. Or to compare it to the original, the NorthStar PP-8HL is 20 inches longer, 3 inches wider, and 14 inches taller than the NorthStar PP-8ST! The extra runway length will accommodate almost all of the longer wheelbase pickup trucks, except dually. This is because the dual rear wheels are TOO WIDE to fit between the column lock assemblies. Check out the NorthStar PP-8HL if you need a portable lift for your dually!
The NorthStar PP series of 4-post lifts (8,000 lb. capacity) are designed and built for use by homeowners or restoration shops. These lifts are not designed for use in commercial repair shops where they would be raised and lowered several times per day. If you have questions about which lift would best work in your application, please contact a salesperson.
The NorthStar PP-8HL includes free plastic drip trays, a free steel jack tray, and a free caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside.
Many customers who purchased this lift also purchased the Northstar RJ-35.
NorthStar PP-8HL Specifications
- Lifting Height to Top Of Runway 84″ (7)
- Clearance Under Runways78 1/2″ (6 6 1/2″)
- Height Of Columns 98 1/2″ (8 2 1/2″)
- Overall Width (Without Motor) 108″ (9’)
- Overall Width (With Motor)116 1/2″ (9 8 1/2″)
- Overall Length with Approach Ramp222″ (18’ 6”)
- Approach Ramp 37″ (3 1″)
- Runway Width 22″ (w/ Rails) or 18 3/4″ (Driving Surface)
- Runway Length 185″ (15’ 5”)
- Runway Thickness4 1/2″ Width Between Runways 38″ (3 2″)
- Width Between Runway Rails 34″ (2’ 10″)
- Outside Runway to Outside Runway77 3/4″ (6 5 3/4″)
- Clearance Between Columns 98″ (8’ 2″)
- Length Between Columns 176 1/2″ (14’ 8 1/2″)
- Maximum Wheelbase 173″ (14 5″)
- Drive Thru (Outside of Tire To Outside Of Tire) 84″ (7’)
- Motor/Electrical Requirement 110-Volt, 30-AMP BREAKER REQUIRED
- Shipping Weight 1,900 lb.
California Prop 65 Warning
California Prop 65 Warning
WARNING Use of these products can expose you to chemicals including styrene and vinyl chloride which are on the list of over 900 chemicals identified by the State of California to cause cancer, birth defects or reproductive harm. ALWAYS use this product in accordance with the manufactures instructions. For more information, go to www.p65warnings.ca.gov.
This warning is required by the California Proposition 65 (Prop 65), also called the Safe Drinking Water and Toxic Enforcement Act which is meant to notify California residents of exposures to Prop 65 listed chemicals that are known to cause cancer, birth defects, or other reproductive harm. The State of California maintains a list of these chemicals and updates in annually. The Prop 65 list currently contains over 900 chemicals and continues to expand. The law requires companies to provide a warning on their products and/or packaging if they contain these chemicals. Proposition 65 only applies to companies that operate, manufacture or sell products in California, but because our products are sold all over the world we have elected to include Prop 65 warnings on all products we sell to provide consumers with information so that they can make informed decisions about the products they purchase and use. The warning does not mean that the product is in violation of any product safety standard, but that certain chemicals may have been used in the manufacturing or packaging production process, even if these products have been used for many years without documented harm.

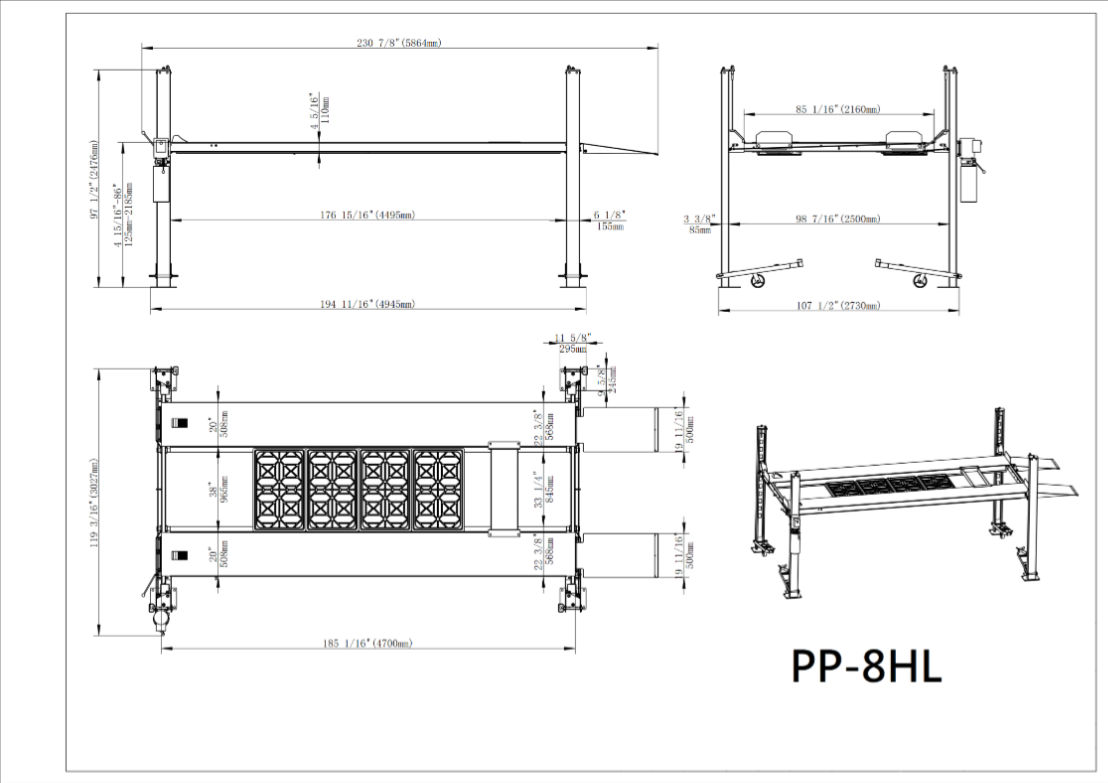

Dimensioned Drawing
