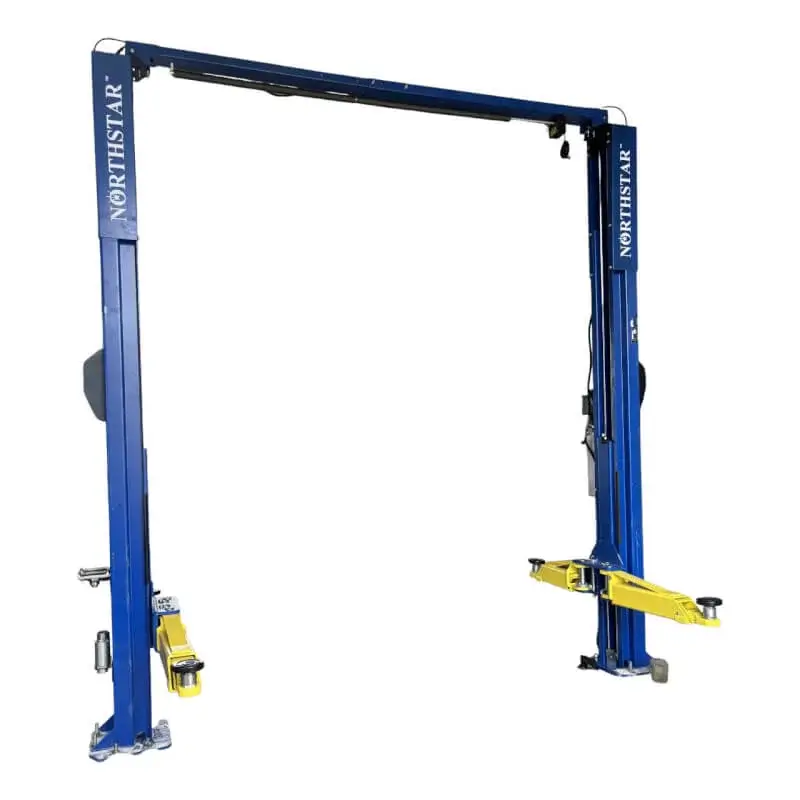

PL-10AS
Best 2-Post Lift for the Price in the USA
Our PL-10AS 2-Post Lift delivers performance comparable to the Rotary SPO10-AV with Double-S columns — but at a significantly lower price and with more features included.
If you’re looking for maximum value without sacrificing strength, safety, or durability, the PL-10AS is the smart choice.
Exclusive Double-S Column Design
The PL-10AS features an advanced Eight-Bend Double-S column design, offering major advantages over traditional Six-Bend straight-column lifts. This Eight-bend S-shaped column design engineered for superior strength, efficiency, and longevity.
Features and Benefits

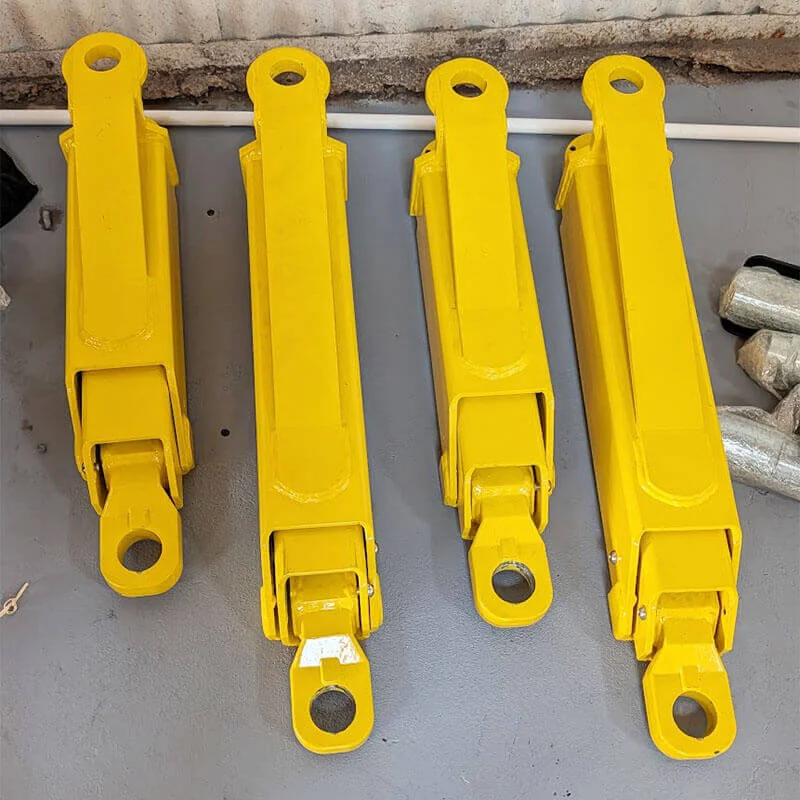

Flexible 3-Stage Arms
- 3-stage low profile front arms and 3-stage low profile rear arms
- Greater flexibility for lifting a wide range of vehicles
Included Adapter Package (Exceptional Value)
- 4 pcs of 3-1/2” tall adapter extensions – $250 value
- 4 pcs of 5” tall adapter extensions – $295 value
- 4 pcs TR (passenger car) adapters, 2” pin dia. – $350 value
- 4 pcs TA (truck) adapters, 2” pin dia. – $375 value
Everything you need is included — no costly add-ons required
Optional accessory
- 4 pcs of 2” tall adapter extensions, 2” pin dia. – $225 value
Easy Installation
- Simple setup saves time
- Reduces labor costs
Built for Long-Term Reliability
- Heavy-duty steel construction
- Designed for consistent, dependable performance
Enhanced Safety
- Advanced safety mechanisms
- Protects both technicians and vehicles
Smooth & Efficient Operation
- Stable lifting performance
- Saves time on every job
Low Maintenance
- Easy operation
- Reduced downtime and service costs

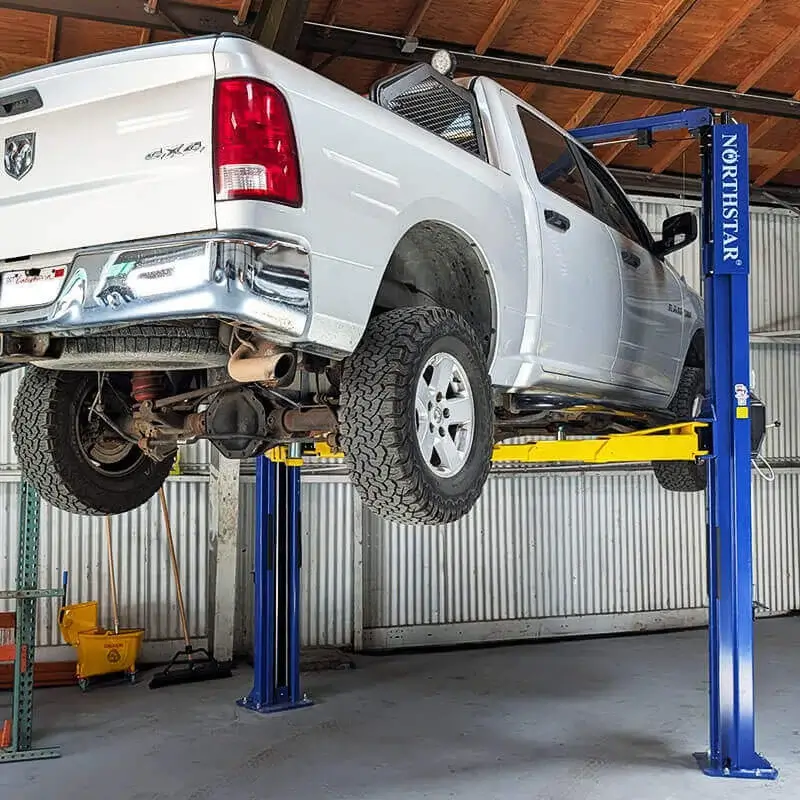

Wide Vehicle Compatibility
- Passenger cars
- SUVs
- Trucks
- Vans
Key Advantages of the Double-S Columns
1. Superior Strength and Rigidity
The multi-bend structure significantly increases column rigidity and reduces deflection under heavy loads. This allows the lift to safely handle trucks and vans while maintaining exceptional structural integrity.
2. Enhanced Carriage Stability
The S-shape creates a precise internal channel that allows the carriage to move smoothly and securely. This improves load distribution and ensures consistent lifting performance.
3.Increased Component Longevity
The column design provides a larger contact surface for self-lubricating Ultra-High Molecular Weight (UHMW) slider bearing blocks.
This:
- Reduces metal-to-metal friction
- Minimizes wear
- Lowers maintenance costs
- Increases overall uptime
4. More Working Space
Despite its strength, the compact column profile provides technicians with improved access around the vehicle.
This makes it easier to:
- Open doors
- Access components
- Work efficiently
5. Thick Steel Construction Columns
Each column is manufactured from two pieces of steel, bottom column is 6 mm (0.24”) steel and upper column is 4mm (0.16”) steel in thickness, eliminating weak points common in multi-piece column assemblies.
The result is long-term reliability and consistent performance.
The Bottom Line
If you want the strength of a premium lift like the Rotary SPO10-AV — but with more included accessories and a better price — the PL-10AS 2-Post Lift delivers unmatched value in the U.S. market.
PL-10AS Specifications
| Lift Configuration | Asymmetric Configuration (PL-10A) | Symmetric Configuration (PL-10S) |
| Lifting Capacity | 10,000 lbs. (4,536 kg.) | 10,000 lbs. (4,536 kg.) |
| Lifting Height (W/Screw Pad-Min) | 70-55/64″ (1,800mm) | 70-55/64″ (1,800mm) |
| Lifting Height (W/Screw Pad-Max) | 71-1/2″ (1,816mm) | 71-1/2″ (1,816mm) |
| Overall Height (Floor to Cyl. Top) | 142-1/2″ (3,619.50mm) | 142-1/2″ (3,619.50mm) |
| Overall Height (Floor to Overhead) | 140″ (3,556mm) | 140″ (3,556mm) |
| Overall Height (Floor to Overhead Switch) | 134-3/4″ (3,422.50mm) | 134-3/4″ (3,422.50mm) |
| Overall Width (Narrow/Wide) | 137-1/2” (3,492mm) | 137-1/2” (3,492mm) |
| Inside Columns | 107-1/5″ (2,723mm) | 114-49/64″ (2,915mm) |
| Drive-Thru. Clearance | 94-3/8″（2,397mm) | 101-1/2″ (2,578mm) |
| Front Arm Reach (3 Stages) | 23-7/64″ / 43-1/2″ (587mm / 1,105mm) | 23-7/64″ / 43-1/2″ (587mm / 1,105mm) |
| Rear Arm Reach (3 Stages) | 29-¹¹/₁₆” / 63″ (754mm / 1,600mm) | 29-¹¹/₁₆” / 63″ (754mm / 1,600mm) |
| Min. Pad Height | 3-13/32″ (86.50mm) | 3-13/32″ (86.50mm) |
| Maximum Load Per Arm | 2,500 lbs. | 2,500 lbs. |
| Lifting Time | 45 Sec. | 45 Sec. |
| Motor / Voltage | 3 HP, 220 V./ 60 Hz / 1 Ph | 3 HP, 220 V./ 60 Hz / 1 Ph |
| Shipping Dimensions | 115-5/32″ (2,925mm) x 43-5/8″” (1,108mm) x 23-15/64″ (590mm) | 115-5/32″ (2,925mm) x 43-5/8″” (1,108mm) x 23-15/64″ (590mm) |
| Shipping Weight | 1,837 lb. (834kg) | 1,837 lb. (834kg) |
California Prop 65 Warning
California Prop 65 Warning
WARNING Use of these products can expose you to chemicals including styrene and vinyl chloride which are on the list of over 900 chemicals identified by the State of California to cause cancer, birth defects or reproductive harm. ALWAYS use this product in accordance with the manufactures instructions. For more information, go to www.p65warnings.ca.gov.
This warning is required by the California Proposition 65 (Prop 65), also called the Safe Drinking Water and Toxic Enforcement Act which is meant to notify California residents of exposures to Prop 65 listed chemicals that are known to cause cancer, birth defects, or other reproductive harm. The State of California maintains a list of these chemicals and updates in annually. The Prop 65 list currently contains over 900 chemicals and continues to expand. The law requires companies to provide a warning on their products and/or packaging if they contain these chemicals. Proposition 65 only applies to companies that operate, manufacture or sell products in California, but because our products are sold all over the world we have elected to include Prop 65 warnings on all products we sell to provide consumers with information so that they can make informed decisions about the products they purchase and use. The warning does not mean that the product is in violation of any product safety standard, but that certain chemicals may have been used in the manufacturing or packaging production process, even if these products have been used for many years without documented harm.

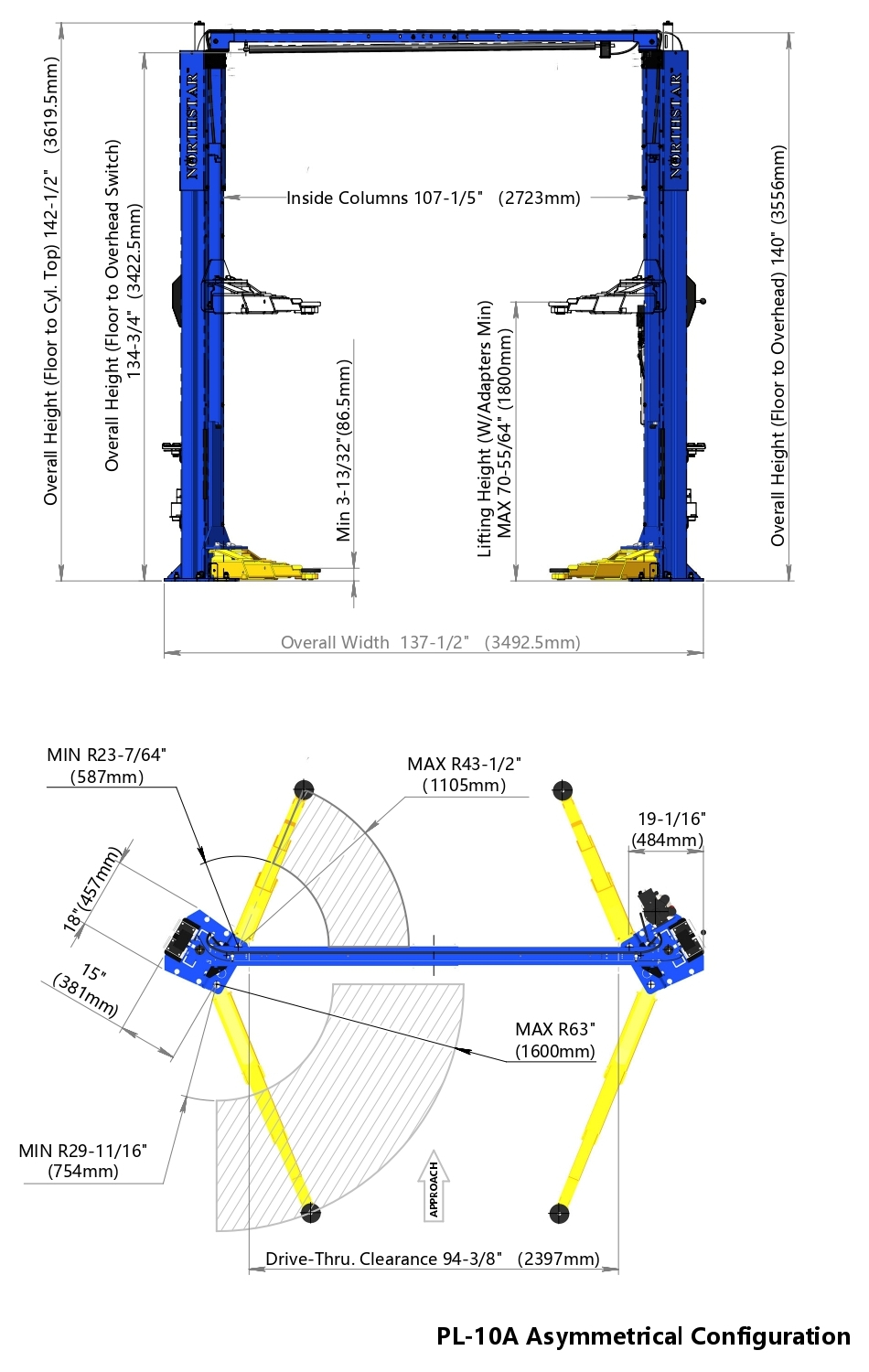

PL-10A Asymmetrical Configuration

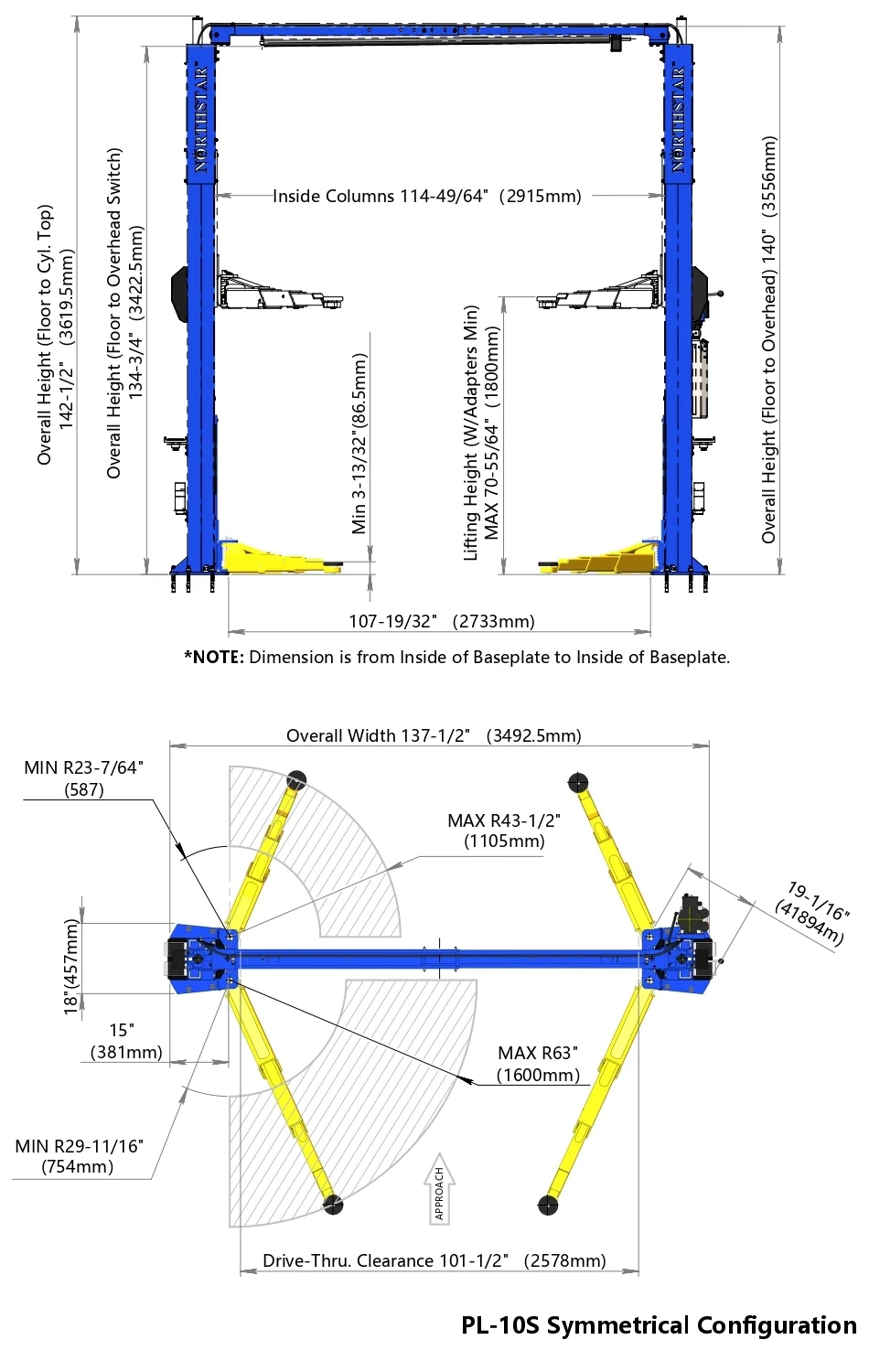

PL-10S Symmetrical Configuration
